surveyframe brand theme for ggplot2

Source: R/plots.R
theme_surveyframe.Rd

A theme_classic()-based ggplot2 theme (visible axis lines, no floating panel), verified against WCAG 2.2 contrast minimums: 4.5:1 for text, 3:1 for non-text graphical objects. Apply it to any ggplot object, including the plots returned by run_analysis_plan() when plots = TRUE.

Usage

theme_surveyframe(
  base_size = 12,
  base_family = "",
  palette = c("web", "print")
)

Arguments

base_size

Numeric. Base font size in points. Defaults to 12.

base_family

Character. Base font family. Defaults to "" (the device default).

palette

One of "web" (brand colours, for on-screen use) or "print" (black/grey/white only, for journal-ready figures). See sframe_brand() for the verified contrast ratios behind each.

Value

A ggplot2 theme object.

See also

run_analysis_plan()

Examples

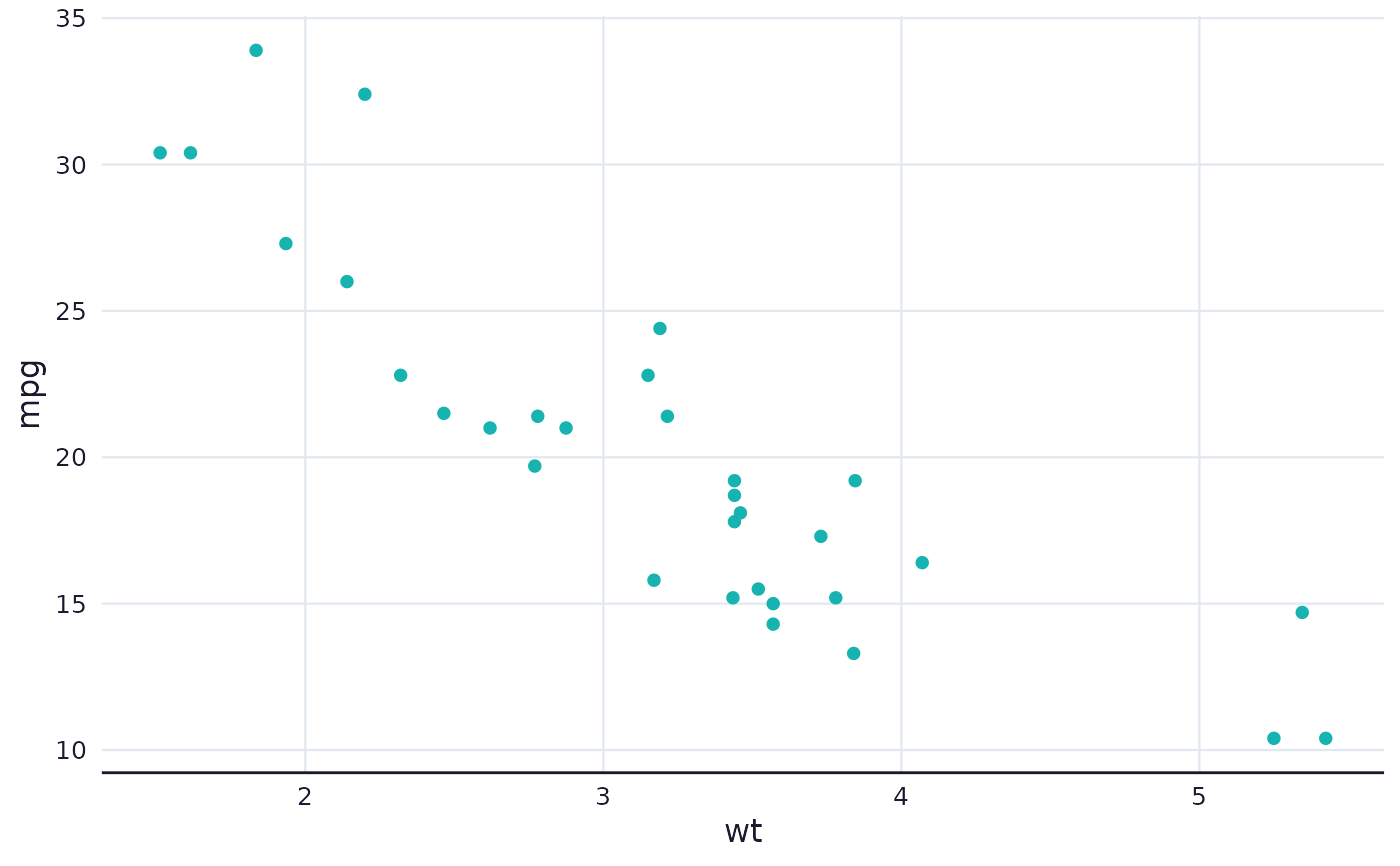

library(ggplot2)
ggplot(mtcars, aes(wt, mpg)) +
  geom_point(colour = "#0E9694") +
  theme_surveyframe()
